CRC System T-Slot Mounts

CRC System T-Slot Mounts

$79.20
$99.00 $79.20
20% OFF Sold out

In stock

Not sure this fits? Jump to the rack fit guide.

Shop Now, Pay Later! 🛍️ 💳

  • Lifetime Warranty
  • Free Shipping Over $150*
  • Easy 30 Day Returns
View full details

Product information

Description

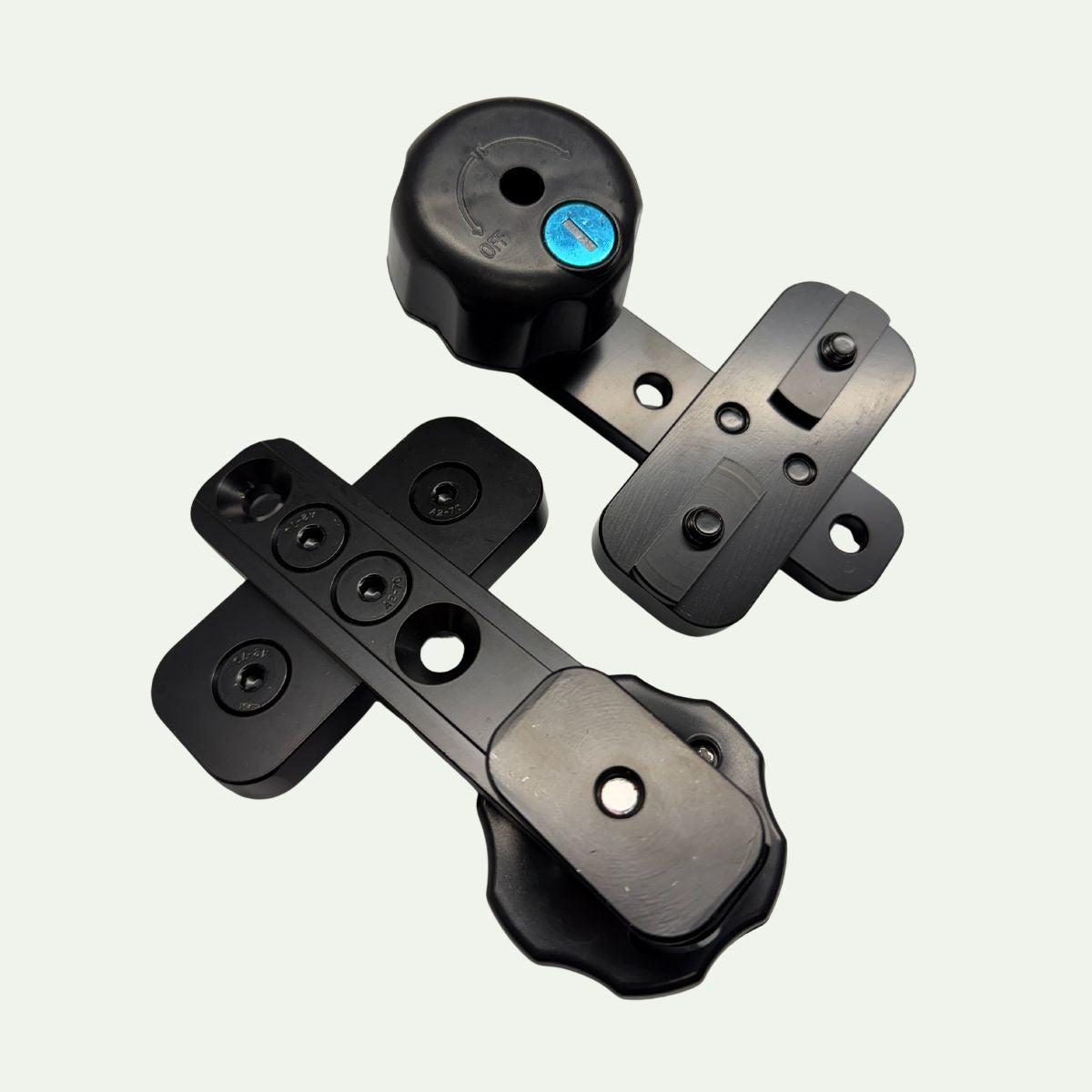

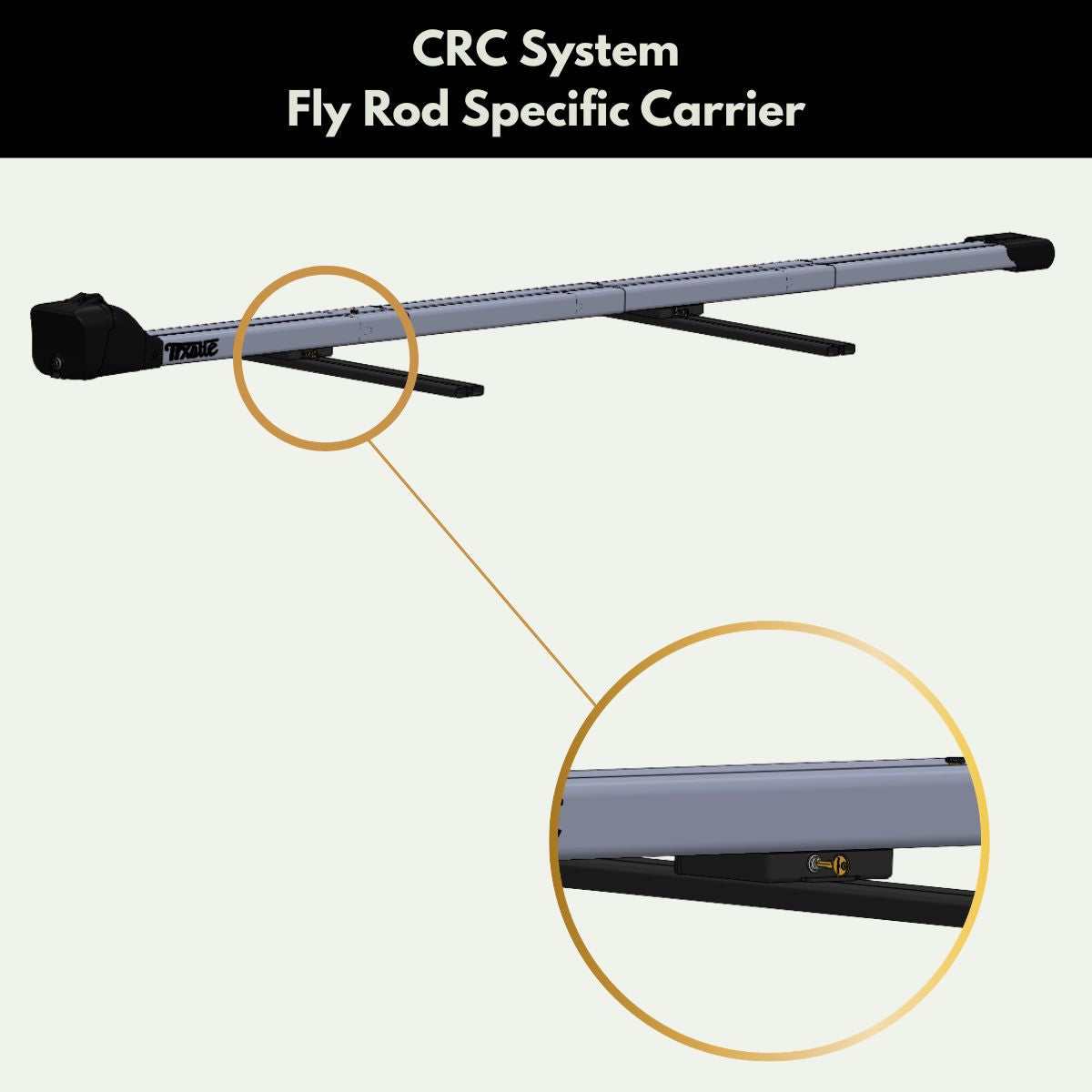

Adapt your CRC System fly rod carrier to fit the majority of T-slot equipped roof rack systems. Made from precision-machined aluminum with a hard-anodized black finish, these clamps provide a durable, secure, and low profile mount for your gear. Each set includes two locking knobs with keys for quick setup and added security. Compatible with all CRC System generations.

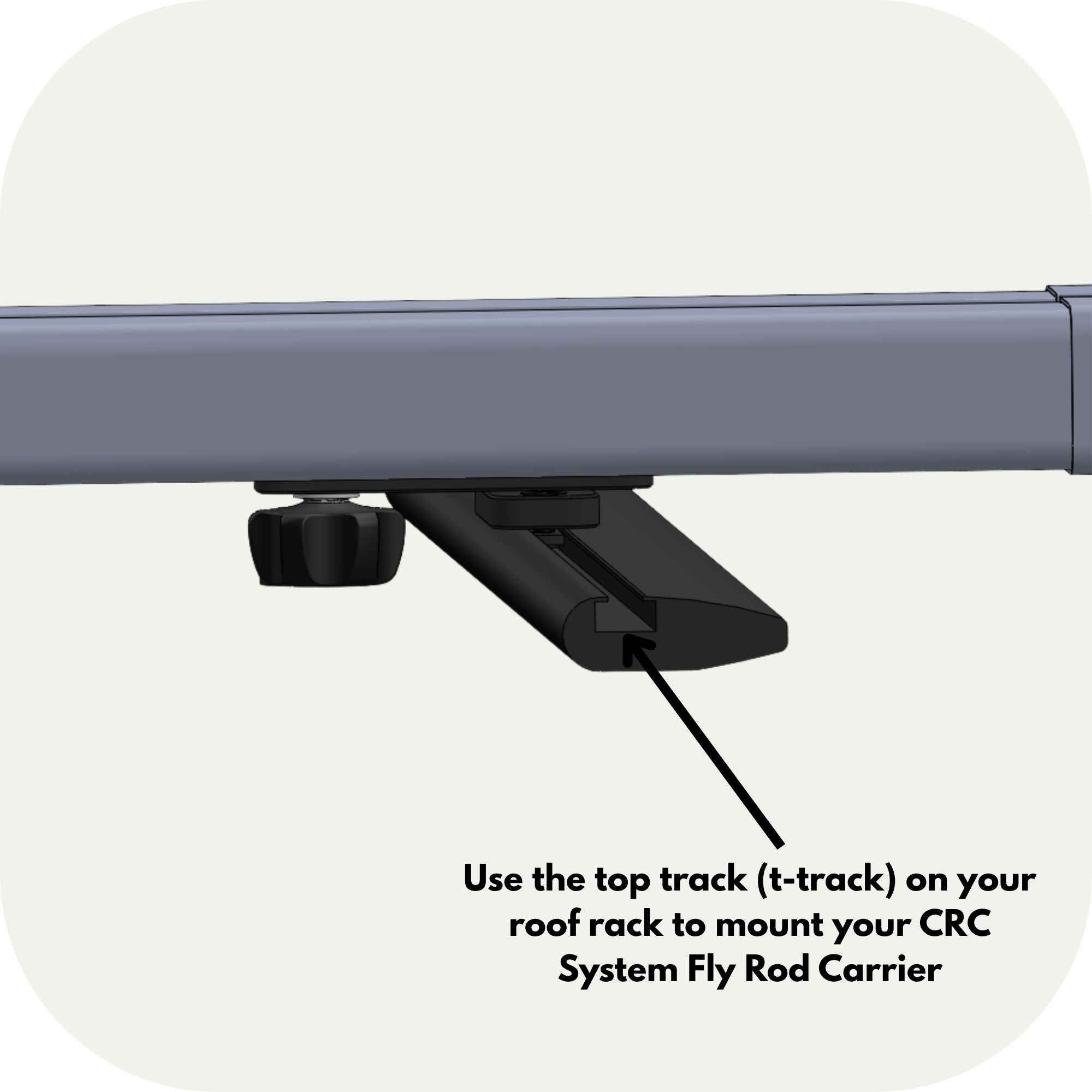

Includes M8 bolts with 12mm wide T-slot nuts that fit most T-track roof racks—please check your specific rack to confirm hardware compatibility.

What's Included
A: Assembled T-Slot Mounts. (2x)

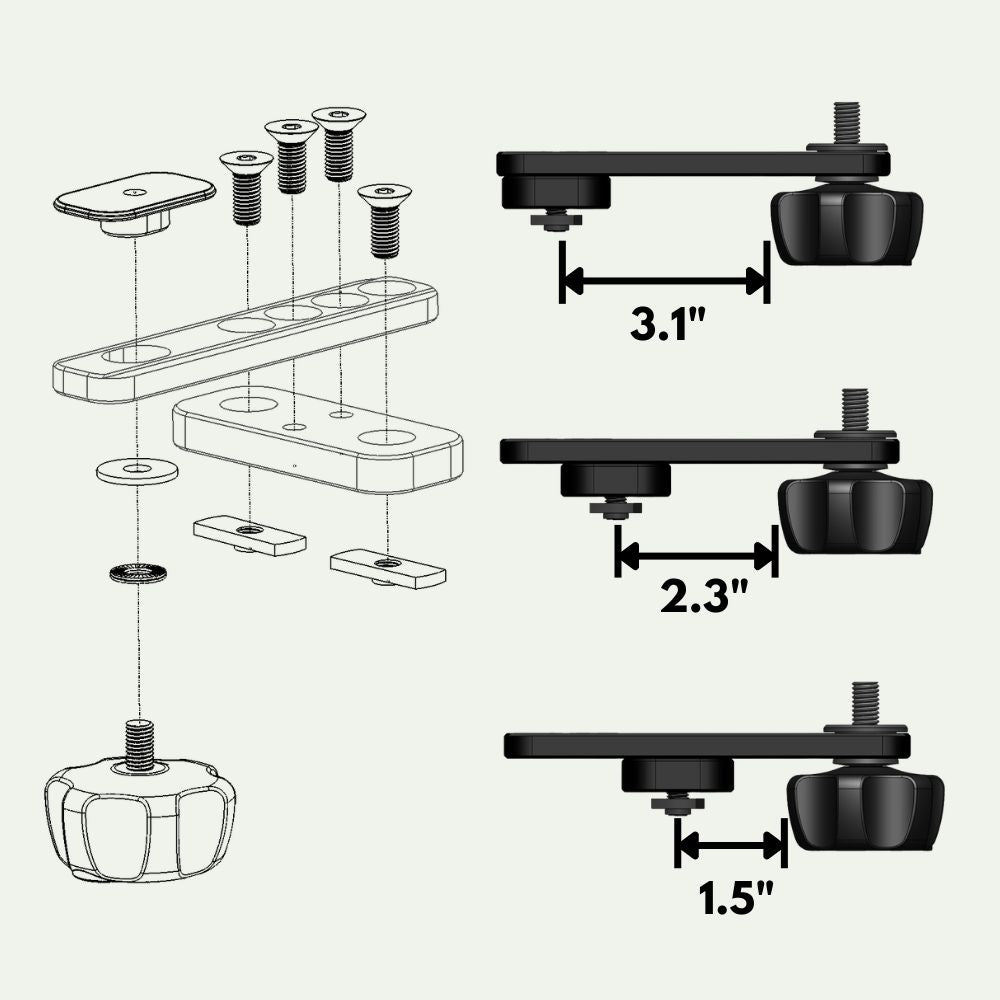

Ready to install and compatible with most roof rack T-tracks. The mounts will ship assembled. The exploded view to the right is for reference.
B: M8 x 20mm Flat Head Screws, Stainless Steel, Black Oxide Coated (4x Per Mount)
C: T-Slot Mount Support Arm (1x Per Mount)
D: T-Slot Mount Base Plate (1x Per Mount)
E: T-Track Nut For Crossbars - 12mm wide (2x Per Mount)

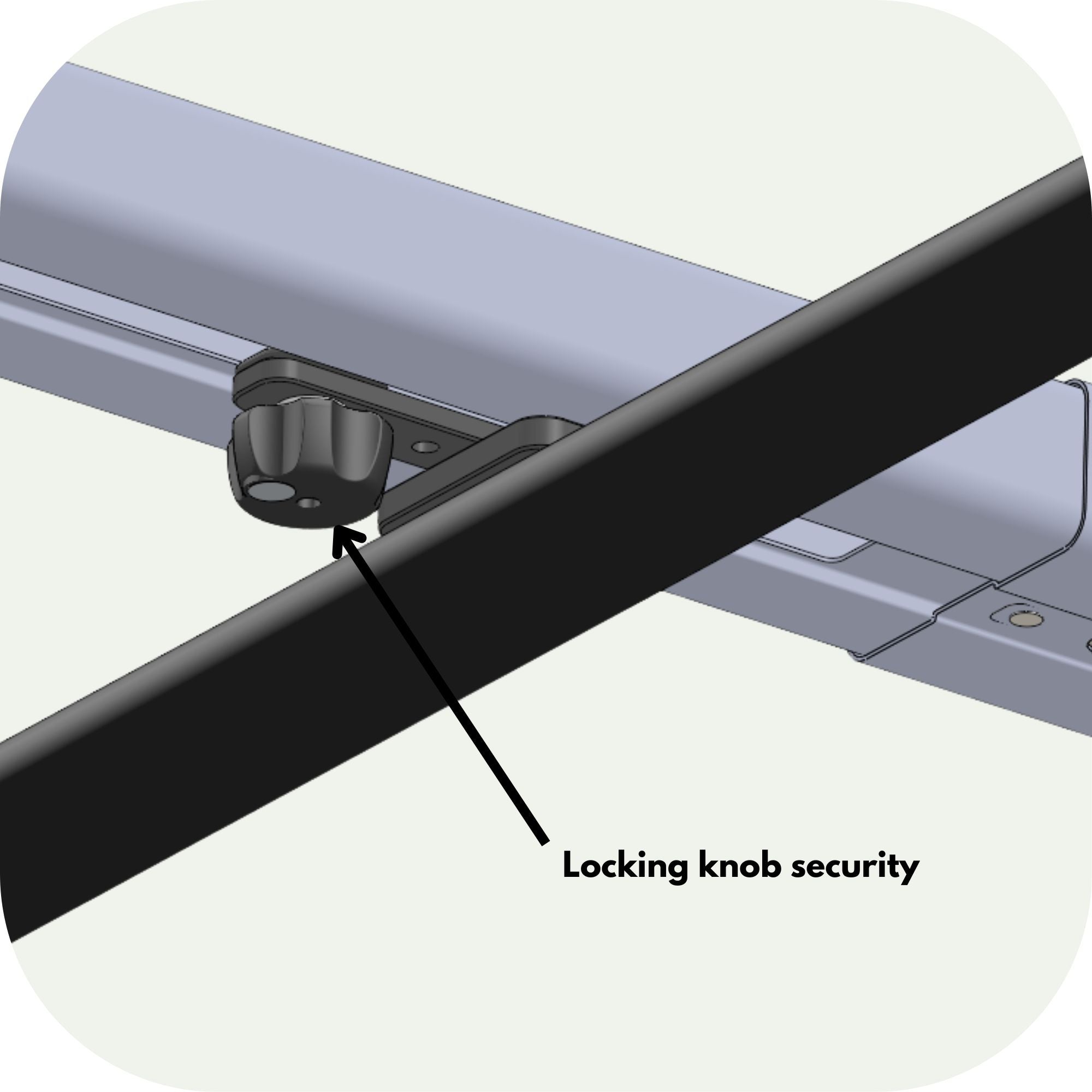

F: Locking T-nut Knob (1x Per Mount) 1 pair of keys included with mounts.
G: T-slot Mount T-Nut (1x)
H: Large Flat Washer (1x Per Mount)
I: Wedgelock Washer (1x Per Mount)
Tech Specs
6061-T6 Aluminum Construction
Weatherproof hard anodized finish
Includes two locking knobs with keys

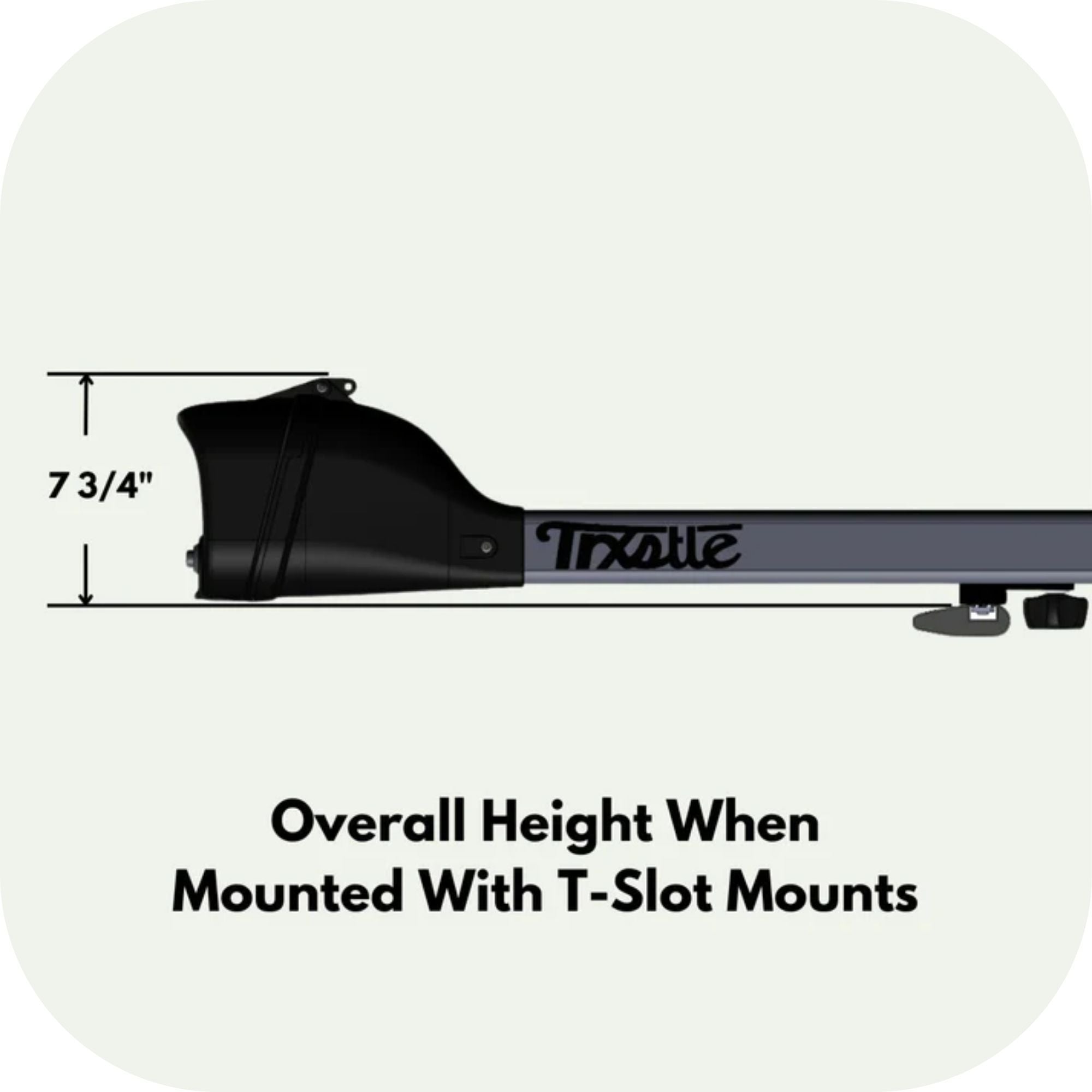

Low Profile - Only 0.8" (20mm) rise from bars
Stainless Steel Hardware
Includes M8 bolts with 12mm wide T-track nuts that fit most T-track roof racks
Dimensions
Longest Length Setting: 3.1" / 79mm, Middle Length Setting: 2.3" / 59mm, Shortest Length Setting: 1.5" / 39mm
Minimum Installation Clearance: 1" / 2.5cm
Minimum Key Clearance: 2" / 5cm
Quick FAQ's
Q: Will this fit my ________ crossbars?
A: Your crossbars should be able to fit an M8 bolt (Roughly equivalent to a 5/16" bolt). The latest revision to the T-slot adapters now have 3 length positions to adapt to any crossbar width!

Q: What size are the T-nuts?
A: Our T-nuts have an M8 thread and are 0.15" X 0.24" X 1.5" (3.6mm X 12mm x 38mm). Our T-slot nuts are designed to fit the widest array of T-slot sizes possible. If you're not sure they will fit or want to check, email support@trxstle.com with your T-slot dimensions and we will confirm for you.

Q: What if my T-slots are too small for M8 hardware?
A: We can assist! The T-slot mounts will work with smaller M6 (1/4" equivalent) mounting hardware which we can help you source.

Q: What are these made out of?
A: Solid aircraft grade aluminum alloy with stainless hardware.

Q: Can I leave these on my rack after I remove my CRC System?
A: Yes, simply tighten the knob after you remove your CRC System and you can leave the T-slot mounts installed full time.
